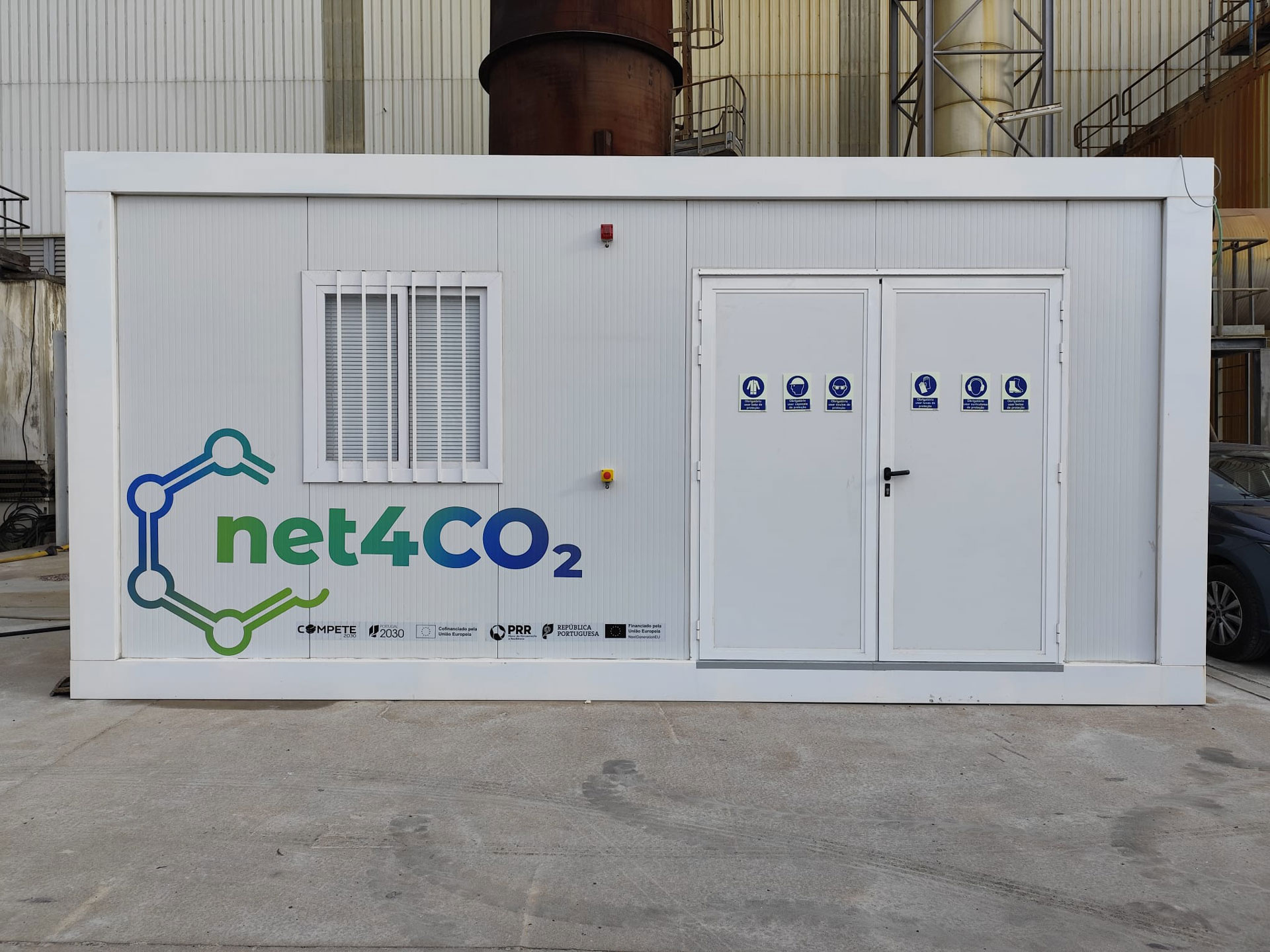

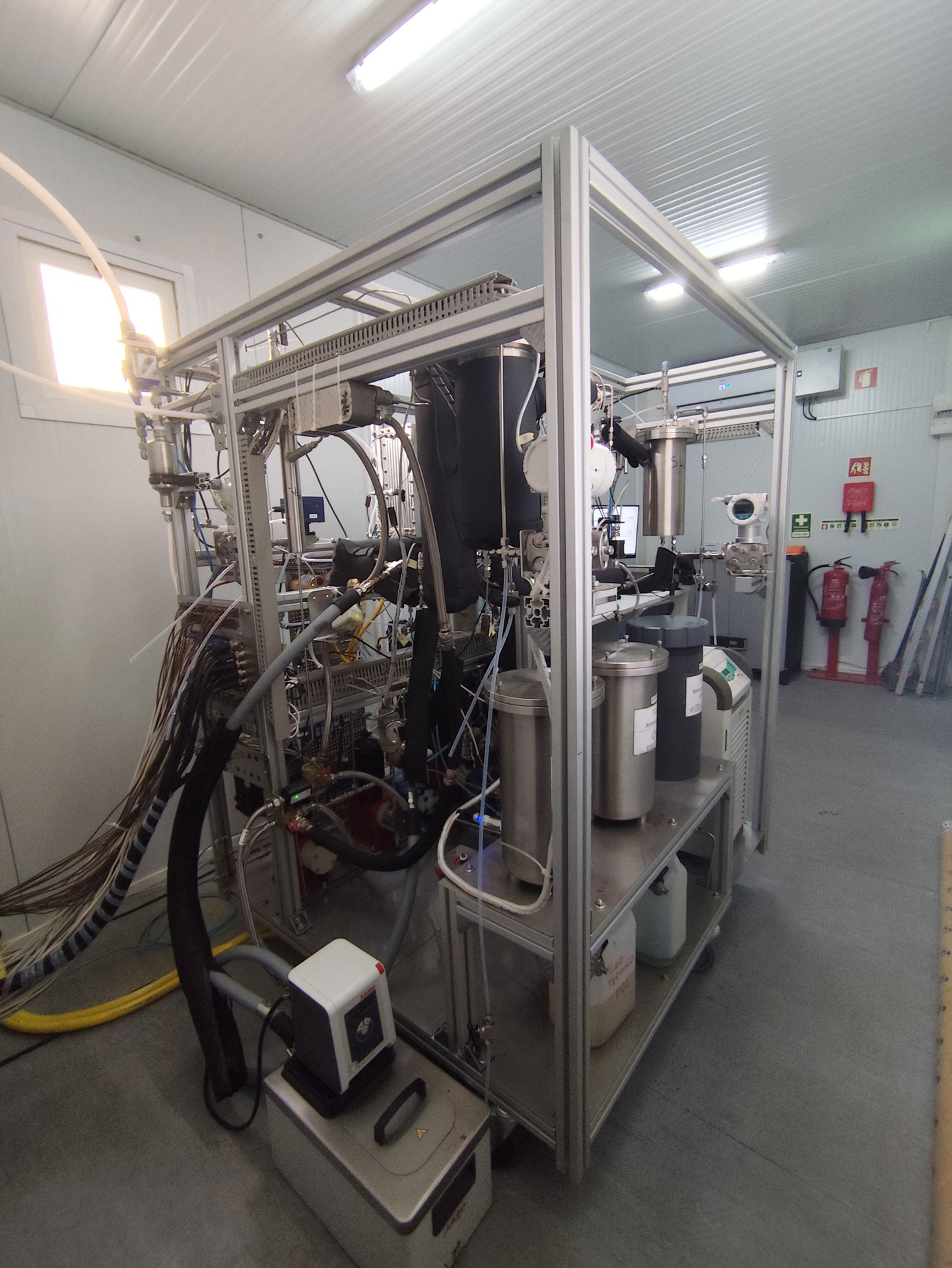

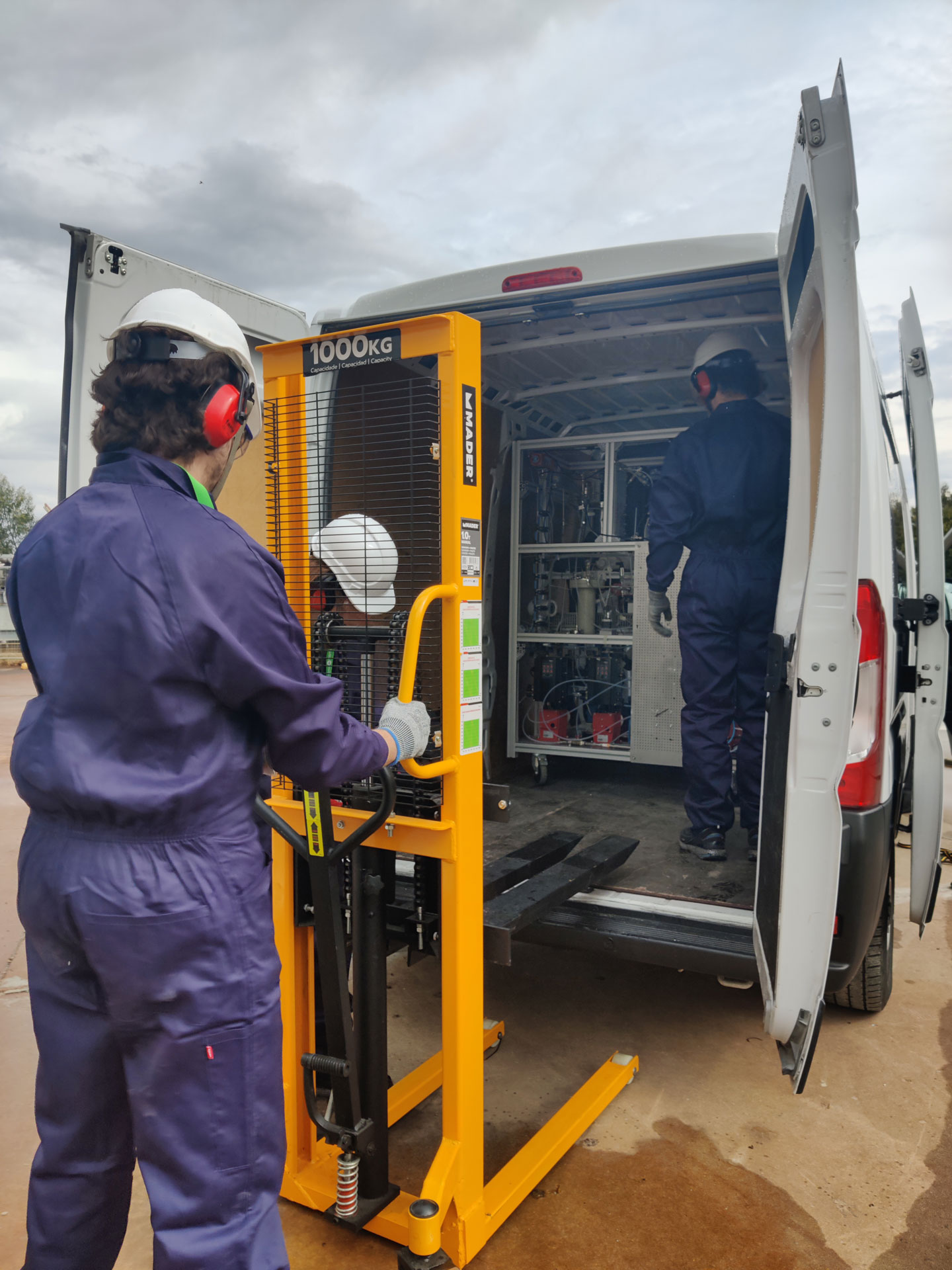

Mobile test unit for CO₂ capture

The technology is designed to efficiently capture CO₂ from industrial combustion gases, particularly under low CO₂ concentration conditions where conventional technologies are less effective. Its mobile unit allows for easier installation across different industrial plants, connecting directly to existing processes without disruption, and demonstrating its decarbonization potential prior to full-scale technology deployment.

High performance

Captured CO₂
CO₂ purity

Key benefits

Integrated System
Joint removal of CO2, SOx and NOx in a single and efficient technology.

Compact & Modular Design Scalable solution, with volume and footprint reduction.

Highly Efficient Structured Absorber
10-50x higher mass transfer when compared to conventional technologies for amine
carbon capture.

Able to Capture at Low CO2 Concentration
Validated with industrial gases with CO2 concentration ranging from 0.5 – 20% with high efficiency.

Efficient Mass and Heat Transfer Active mixing inside gas-liquid contacting unit enhances transport phenomena.

Efficient use of the Flow Energy Promotes intense mixing between streams using the flow energy alone.

Pilot Observatory

CO₂ Captured
Operation Hours

How it works

NetCap technology

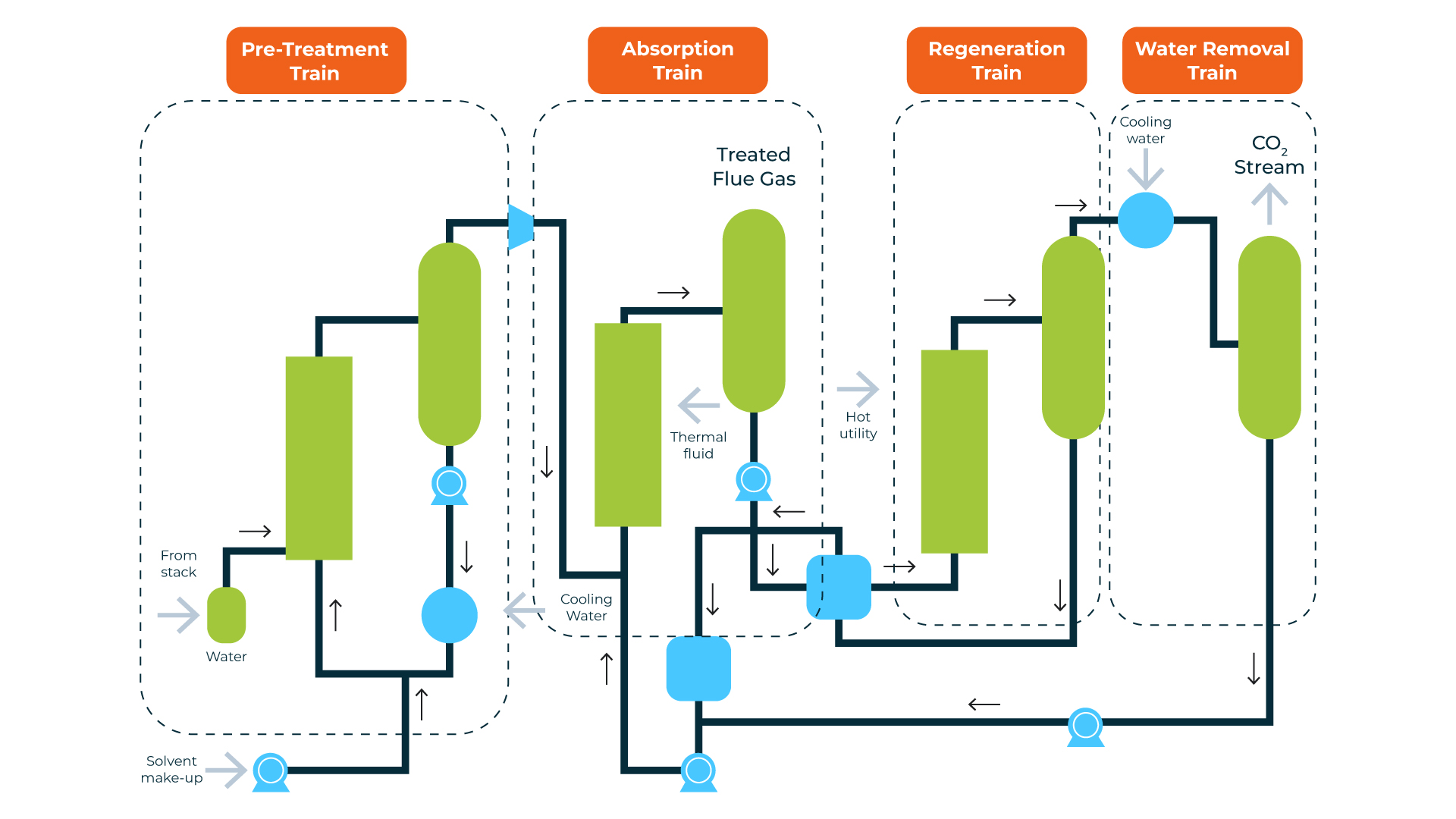

Process Overview

Flue gas scrubbing that removes impurities (e.g., particulates, SOx, NOx) to protect the capture solvent and equipment, ensuring optimal CO₂absorption efficiency.

The treated flue gas passes through the absorber where CO₂ reacts chemically with the solvent (e.g., amines) to form a rich CO₂–solvent solution.

The CO₂-rich solvent is heated in a regenerator to release high-purity CO₂ gas. The lean solvent is then cooled and recycled back to the absorber.

Condenses and removes excess water vapor from the regenerated CO₂ stream, producing a dry CO₂ product suitable for compression, transport, or utilization.
